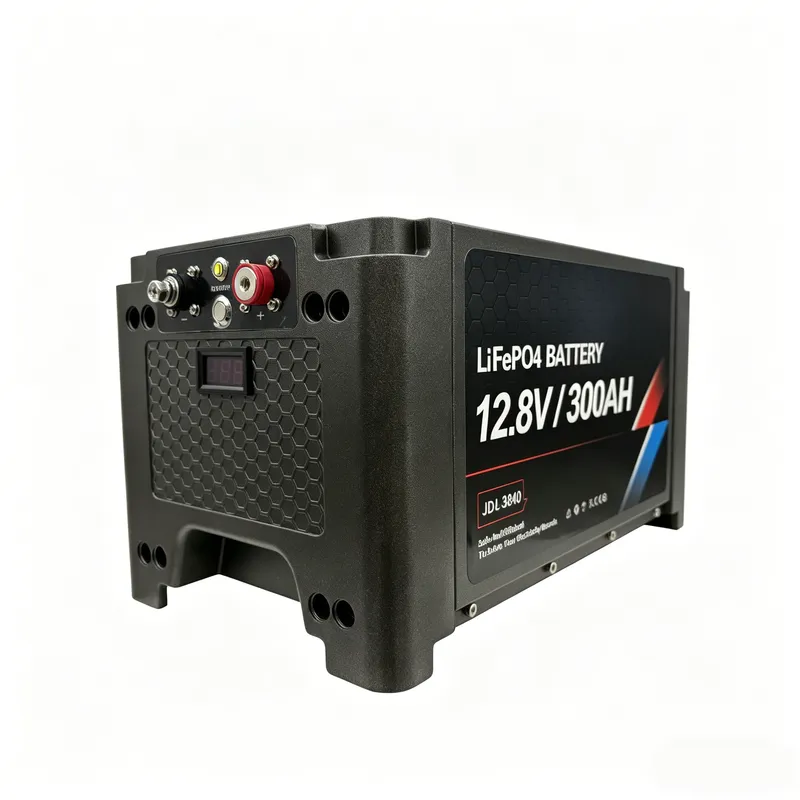

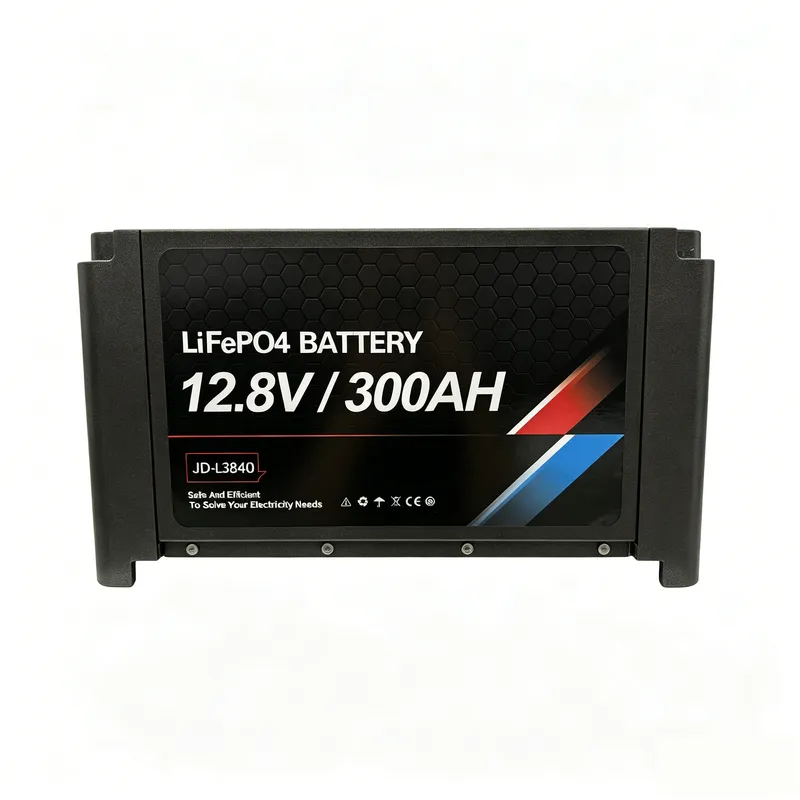

12.8V/300Ah 4KWh LiFePO4 Battery JD-L3840
12.8V/300Ah 3.84KWh Lithium Iron Phosphate Battery (Stackable, Non Wall-Mount) - JINDIAN
JINDIAN produce and supply high-performance solar lithium iron phosphate batteries, which also called Solar Power Bank, Solar Lithium Battery, Lithium Power Bank, LiFePO4 Lithium Battery Pack, LiFePO4 Battery Energy Storage System. JINDIAN is a professional LiFePO4 battery manufacturer specializing in reliable deep cycle lithium battery solutions. This series of deep cycle solar batteries features 6000 deep cycles, 5 years warranty, and a service life of more than 10 years.
JINDIAN LiFePO4 batteries are most famous for their strong security profile, the consequence of amazingly stable lithium iron phosphate chemistry. LiFePO4 batteries are non-harmful, non-polluting, and with excellent space utilization. With a stackable design for flexible capacity expansion, it is the best choice for a long-lasting, safe, eco-friendly and efficient energy solution.
12.8V/300Ah 3.84KWh Lithium Iron Phosphate Battery (Stackable, Non Wall-Mount) Brief

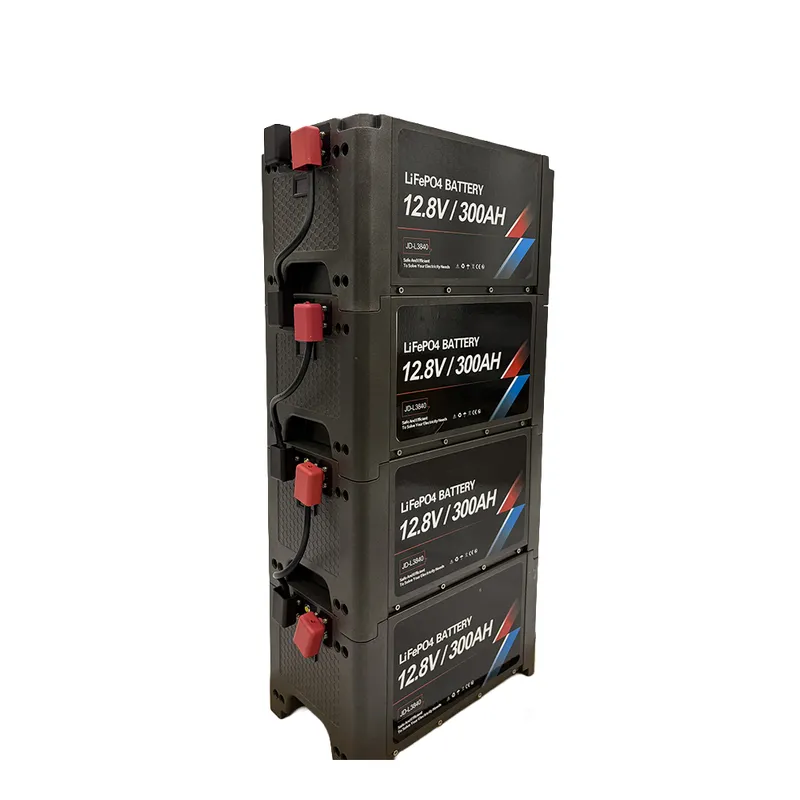

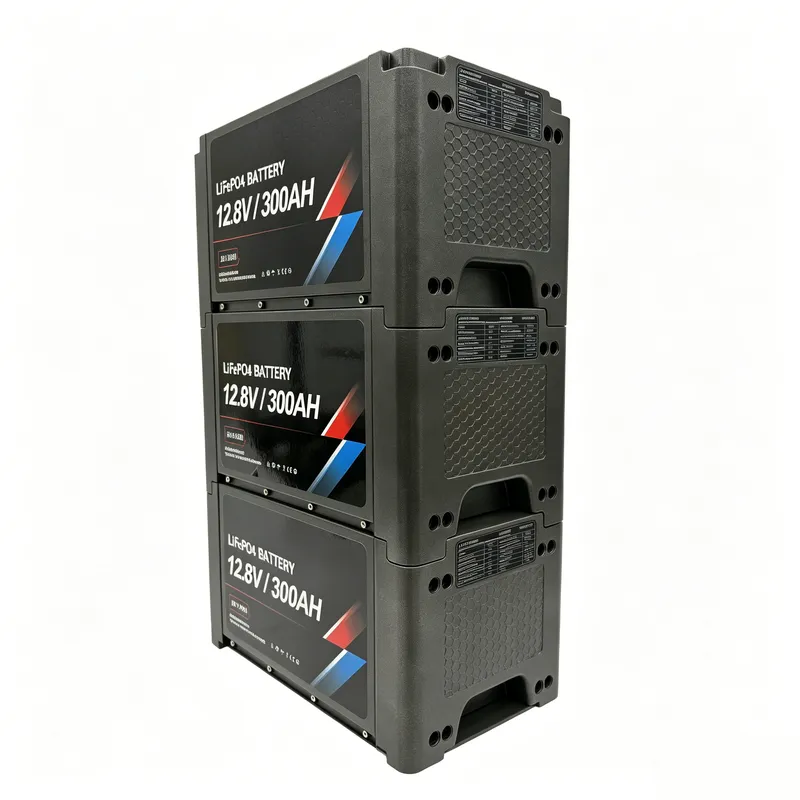

This 12.8V/300Ah 3.84KWh lithium iron phosphate battery is a premium choice to deal with emergency power shortage and off-grid power demand. This battery features a compact stackable design (non wall-mount) for flexible installation and capacity expansion, equipped with an intelligent BMS battery management system. It utilizes grade A LiFePO4 battery cells and is a deep-cycle battery capable of enduring 6000 cycles.
With core specifications of 12.8V nominal voltage, 300Ah rated capacity and 3840Wh total energy, this battery delivers highly efficient charge and discharge performance, with 14.6V standard charging voltage, 150A maximum charging current and 150A maximum discharging current. This battery is configured with multiple comprehensive safety protection settings, including over-voltage protection, low-voltage protection, charge and discharge over-current protection, and over-temperature protection, ensuring stable and safe operation within the working temperature range of -15℃ to +55℃.
12.8V/300Ah 3.84KWh Lithium Iron Phosphate Battery (Stackable, Non Wall-Mount) Application
Suit for solar energy storage system, provide emergency back up power
Home and commercial UPS power bank, inverter power bank
RV, caravan and marine on-board power system
Telecommunication power system, signal tower backup power supply
Industrial automation equipment, construction site power supply
Agricultural photovoltaic power storage, rural off-grid power supply
Security communications, monitoring equipment power supply
Transportation logistics, mobile service vehicle power system and so on
| TECHNICAL PARAMETER | |
|---|---|
| Battery | 12.8V 300AH |
| Watt-hour | 3840 Wh |
| Normal charging voltage | 14.6V |
| Maximum charging current | 150A |
| Discharge termination voltage | 10V |
| Recommended discharge termination voltage | 11.2V |
| Maximum discharge current | 150A |
| PROTECTION | |
| Single charging overvoltage protection | 3.7V |
| Overall battery overvoltage protection | 14.6V |
| Low voltage protection (single cell discharge) | 2.5V |
| Charge overcurrent protection | 150A-200A |
| Discharge overcurrent protection | 150A-300A |
| AMBIENT | |
| Operating temperature | -15℃ ~ +55℃ |
| Load temperature | -20℃ ~ +50℃ |
| DIMENSION & WARRANTY | |
| Package size (mm) | 450*270*260mm |
| Gross weight | ≈29KG |
| Product size | 247*255*440mm |
| Net weight | ≈28.36kg |
| Warranty | 5 years |
