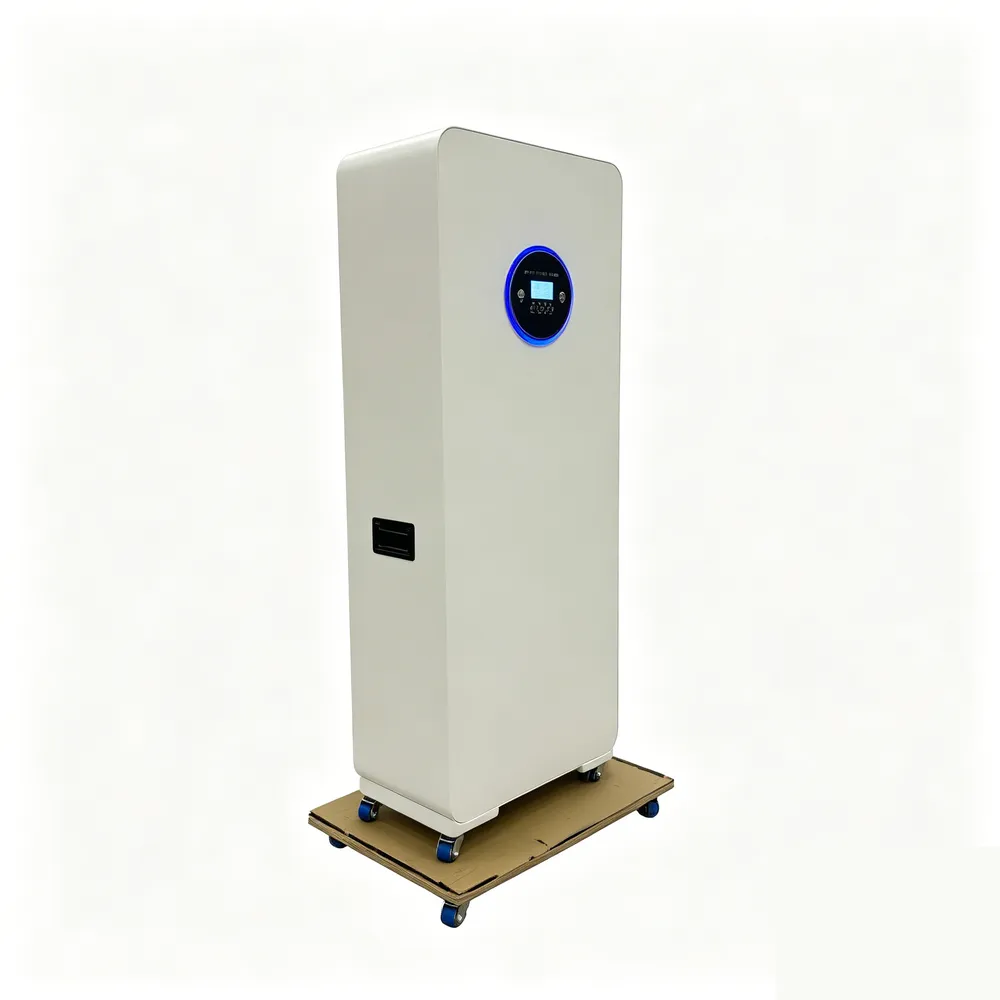

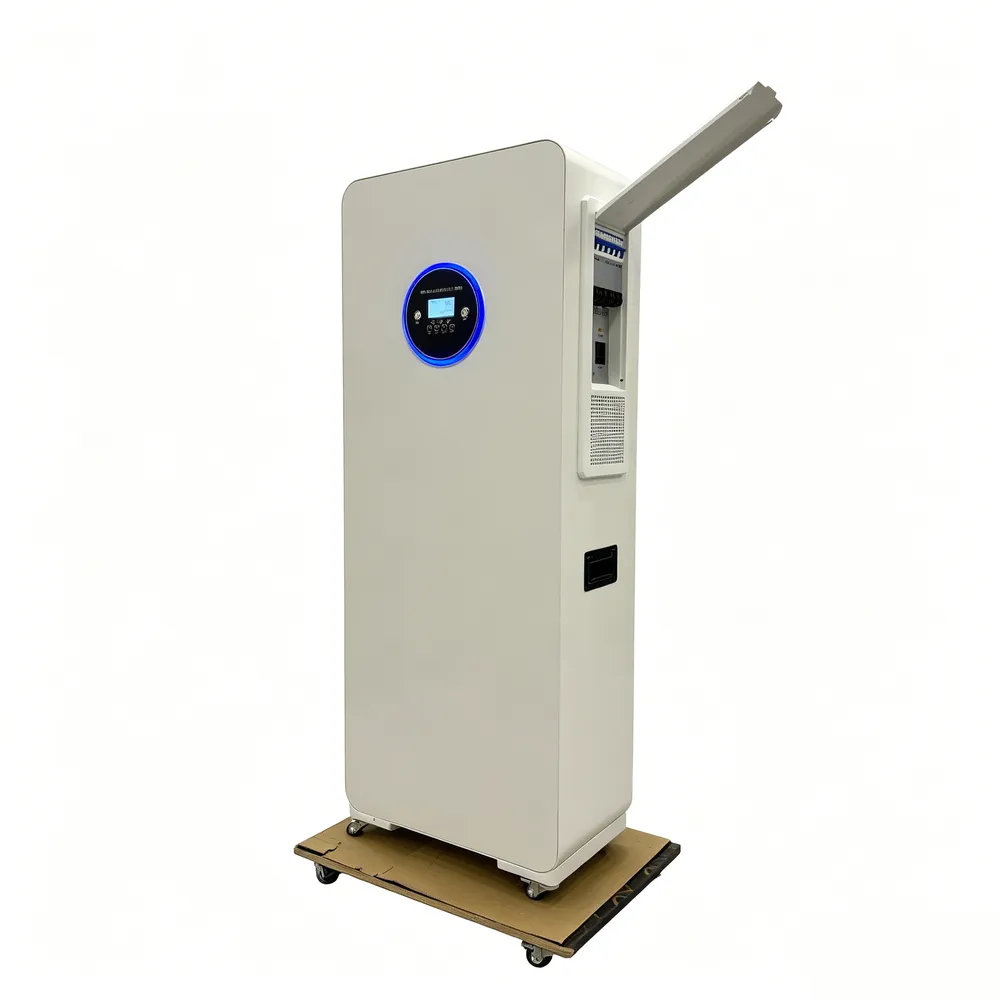

JD-A300 51.2V 300Ah 15360Wh 5500W All-in-One LiFePO4 Energy Storage Inverter System JD-A300
JD-A300 51.2V/300Ah 15360Wh On/Off-Grid Hybrid Energy Storage System (5500W Rated Output, 5-Year Warranty)
JD-A300 51.2V/300Ah 15360Wh 5500W Hybrid Energy Storage System Product Brief
JD-A300 51.2V/300Ah 15360Wh 5500W Energy Storage System Application Scenarios
Suitable for residential on-grid photovoltaic energy storage systems, matching with household rooftop solar panels to store solar power generated during the day, realizing peak shaving and valley filling of household electricity consumption, reducing electricity costs, and providing whole-house emergency backup power during grid outages to avoid the impact of power failures on daily life.
Ideal for off-grid solar power supply scenarios in remote mountainous areas, pastoral areas, islands, border posts and other areas without stable grid coverage, providing a stable and reliable independent power supply solution for daily production and living electricity, lighting, communication and monitoring equipment.
Applicable for villas, townhouses and high-end residential whole-house energy storage, supporting the stable operation of all household appliances, central air conditioning, lighting systems, security monitoring and smart home equipment, realizing self-consumption of photovoltaic power generation and uninterrupted power supply for the whole house.
Can be used for small commercial and industrial energy storage scenarios, including small retail stores, rural supermarkets, office buildings, workshops, etc., to optimize electricity costs through peak-valley arbitrage, and serve as emergency backup power during unexpected power outages to avoid business interruption and economic losses.
Perfect for telecommunication base stations, railway communication rooms, outdoor monitoring sites, and border defense facilities, providing long-term stable backup power for communication, monitoring and signal transmission equipment, ensuring uninterrupted operation of equipment even in the event of grid failures.
Suitable for agricultural photovoltaic energy storage scenarios, including greenhouse planting, livestock breeding farms, agricultural irrigation systems, etc., storing solar power to supply agricultural equipment, realizing low-cost and environmentally friendly agricultural production power supply.
Also widely applied to new energy microgrid systems, emergency rescue and disaster relief power supply, medical equipment backup power, security communications, transportation logistics hubs, and other scenarios that require high-reliability, high-capacity and high-power integrated energy storage power supply.
| JD-A300 5500W ALL-IN-ONE SOLAR ENERGY STORAGE SYSTEM | |
|---|---|
| SYSTEM CORE PARAMETER | |
| Model | JD-A300 |
| AC Output Rated Power | 5500VA/5500W |
| AC INPUT PARAMETER | |
| AC Input Voltage Range | 170-280Vac |
| Frequency | 50Hz / 60Hz |
| Max AC Charging Current | 80A |
| PV INPUT PARAMETER | |
| PV Max Input Power | 5500W |
| PV Open Circuit Voltage | 550V |
| MPPT Input Voltage Range | 120-450Vdc |
| PV Input Current | 100A |
| AC OUTPUT PARAMETER | |
| AC Output Voltage | 230Vac±5% |
| AC Rated Current | 23.9A |
| PV OUTPUT & CHARGING PARAMETER | |
| PV Max Output Power | 5500W |
| Max Charging Current | 100A |
| BATTERY PARAMETER | |
| Battery Type | LiFePO4 Lithium Battery |
| Battery Voltage Range | 40-60Vdc |
| Battery Rated Voltage | 51.2Vdc |
| Battery Energy | 15360WH |
| Battery Capacity | 300Ah |
| Depth of Discharge (DOD) | 93% |
| OPERATING TEMPERATURE | |
| Working Temperature Range | -10℃ ~ +55℃ |
| DIMENSION & WEIGHT | |
| Package Size | 1440*565*440mm |
| Gross Weight | ≈156.3KG |
| Product Size | 1360*480*255mm |
| Net Weight | ≈132.16kg |
| QUALITY ASSURANCE | |
| Quality Assurance | 5 Years |
