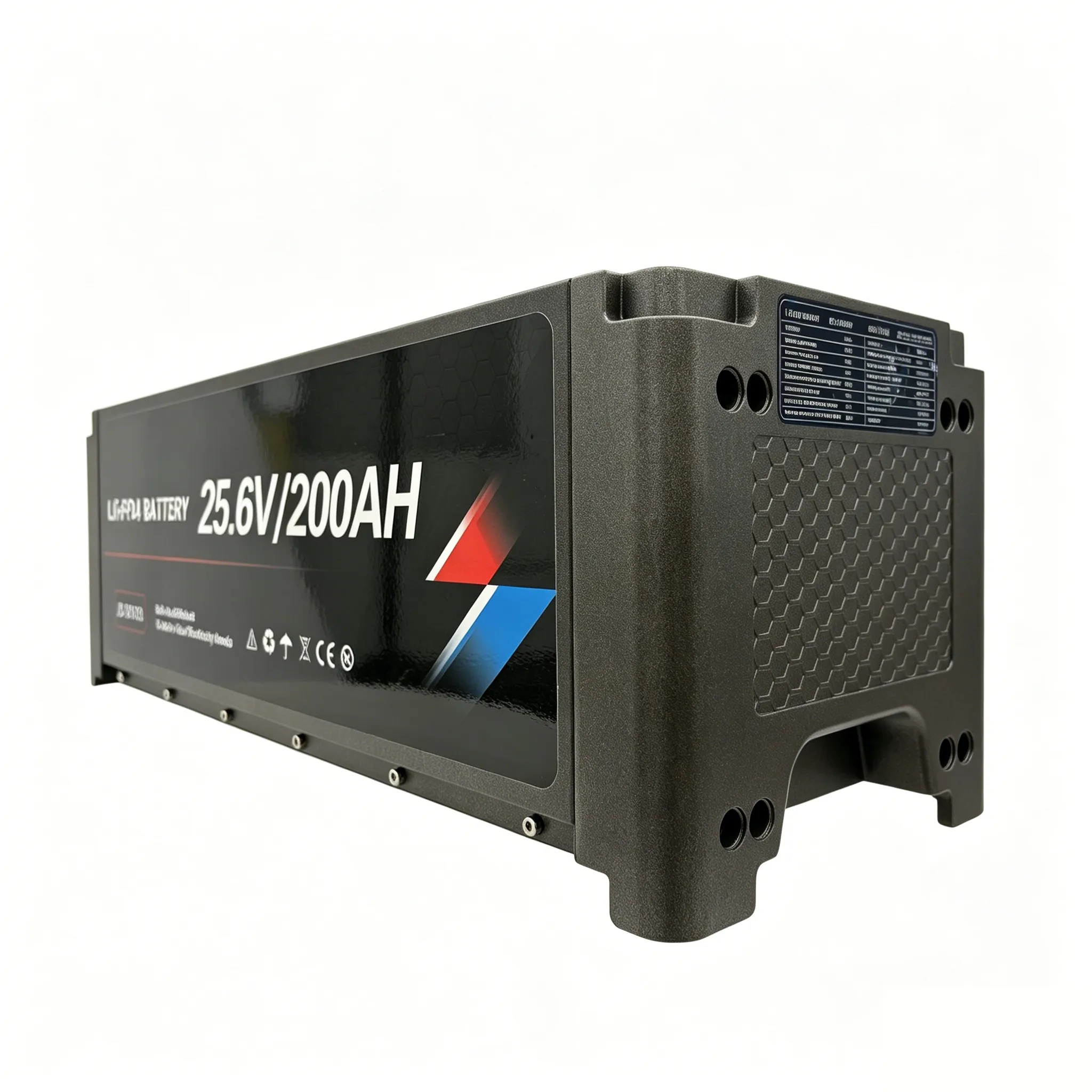

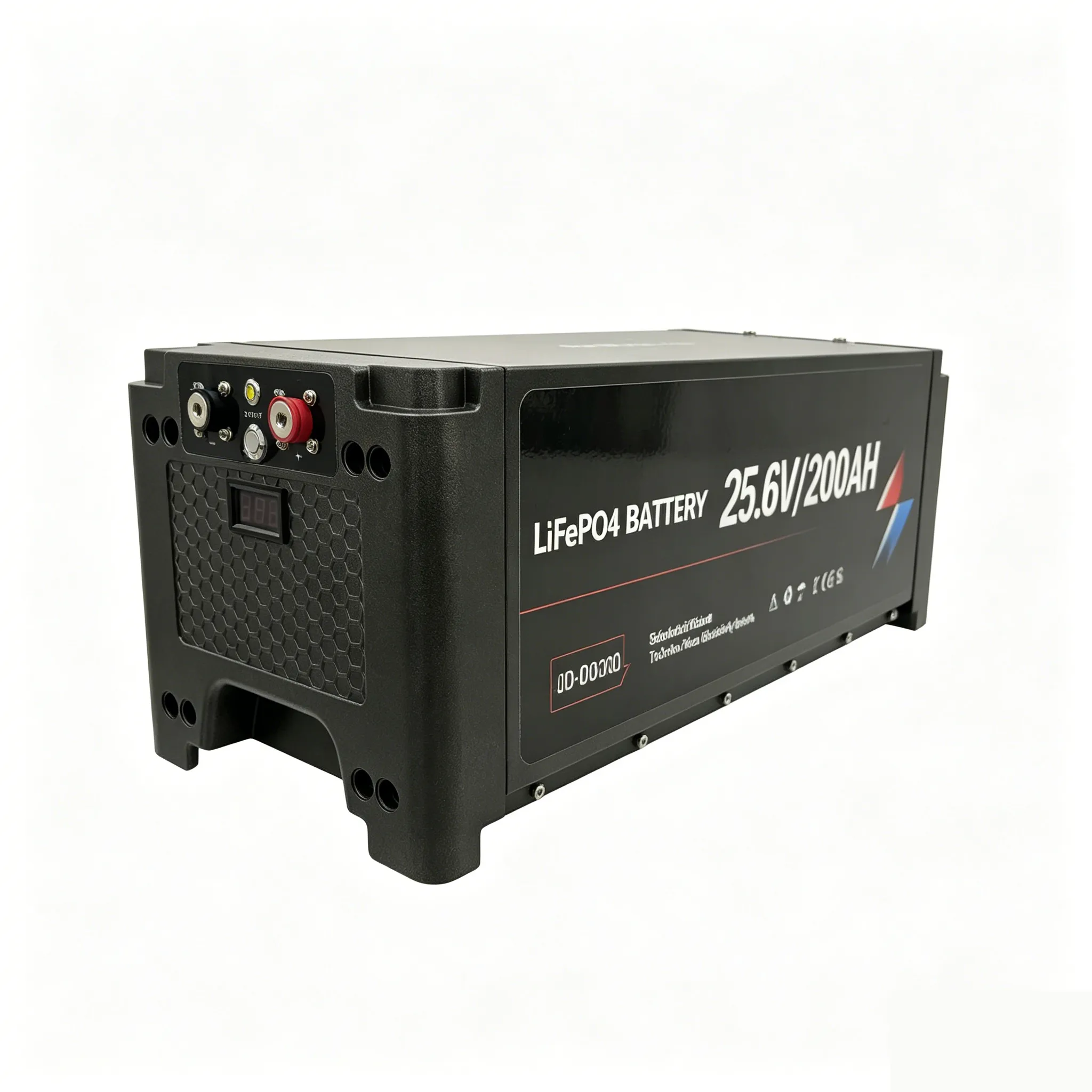

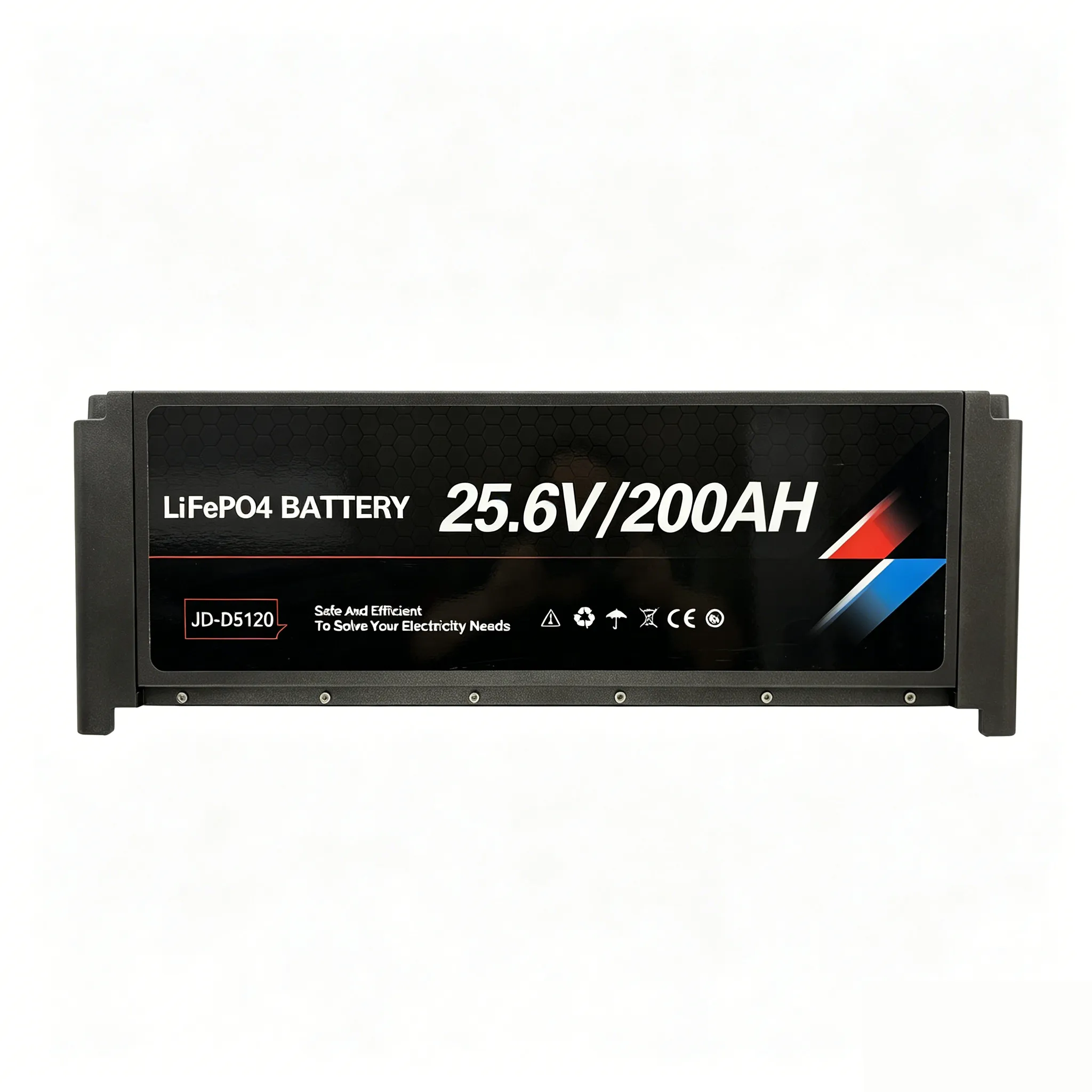

25.6V 200AH 5.12KWh LiFeP04 Battery JD-D5120
JD-D5120 25.6V/200Ah 5120Wh Energy Storage Battery (Intelligent BMS, 5-Year Warranty)
We design and manufacture high-performance LiFePO4 battery packs for solar energy storage, also known as deep cycle off-grid battery units, residential photovoltaic backup batteries, and small commercial energy storage cells. Our JD-D5120 delivers stable high-current charge-discharge performance with premium Grade A cells, backed by a 5-year standard warranty, perfectly adapting to household, commercial and off-grid energy storage demands.
JD-D5120 25.6V/200Ah 5120Wh Energy Storage Battery (Intelligent BMS, 5-Year Warranty) Brief
This JD-D5120 battery pack features a rated specification of 25.6V 200Ah with 5120Wh rated energy. It supports a normal charging voltage of 29.2V, max charging current of 150A, discharge cut-off voltage of 20V (recommended 22.4V), and max continuous discharge current of 150A.
The built-in high-precision intelligent BMS provides comprehensive safety protection: 3.7V cell overcharge protection, 29.2V full battery overvoltage protection, 2.5V cell overdischarge protection, 150A-200A charge overcurrent protection, and 150A-300A discharge overcurrent protection. It operates stably in a working temperature range of -15℃~+55℃, and adapts to a load temperature range of -20℃~+50℃.
Product size: 680*255*245mm, net weight ≈35.59kg; packaging size: 837*338*353mm, gross weight ≈43.09kg, compatible with flexible installation, with a standard 5-year quality warranty.
JD-D5120 25.6V/200Ah 5120Wh Energy Storage Battery (Intelligent BMS, 5-Year Warranty) Application
- Residential solar photovoltaic energy storage and whole-house emergency backup power
- Off-grid solar power systems, remote areas, pastoral areas and island power supply
- RV travel, yacht and large vehicle-mounted energy storage scenarios
- Small commercial backup, telecommunication base stations and security monitoring power supply
| JD-D5120 LiFePO4 BATTERY | |
|---|---|
| BATTERY CORE PARAMETER | |
| Model | JD-D5120 |
| Battery Rating | 25.6V 200Ah |
| Watt-hour | 5120 Wh |
| Normal Charging Voltage | 29.2V |
| Maximum Charging Current | 150A |
| Discharge Cut-off Voltage | 20V |
| Recommended Discharge Cut-off Voltage | 22.4V |
| Maximum Discharge Current | 150A |
| PROTECTION PARAMETER | |
| Single Cell Over-Charge Protection | 3.7V |
| Whole Battery Over-Charge Protection | 29.2V |
| Single Cell Low Voltage Discharge Protection | 2.5V |
| Charging Over-Current Protection | 150A-200A |
| Discharging Over-Current Protection | 150A-300A |
| OPERATING TEMPERATURE | |
| Working Temperature | -15℃ ~ +55℃ |
| Load Temperature | -20℃ ~ +50℃ |
| DIMENSION & WEIGHT | |
| Package Size | 837*338*353mm |
| Gross Weight | 43.09kg |
| Product Size | 680*255*245mm |
| Net Weight | 35.59kg |
| QUALITY ASSURANCE | |
| Quality Assurance | 5 Years |
