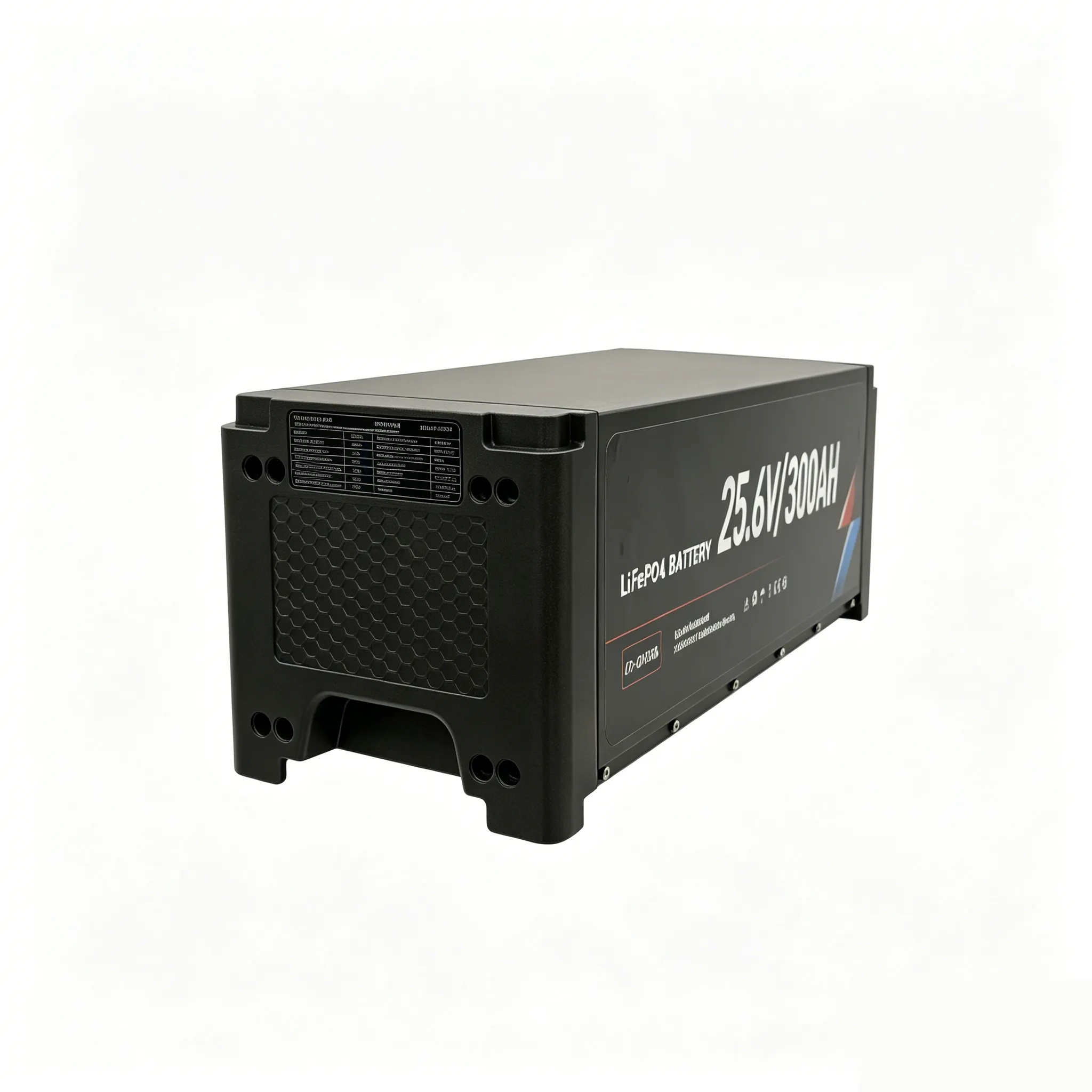

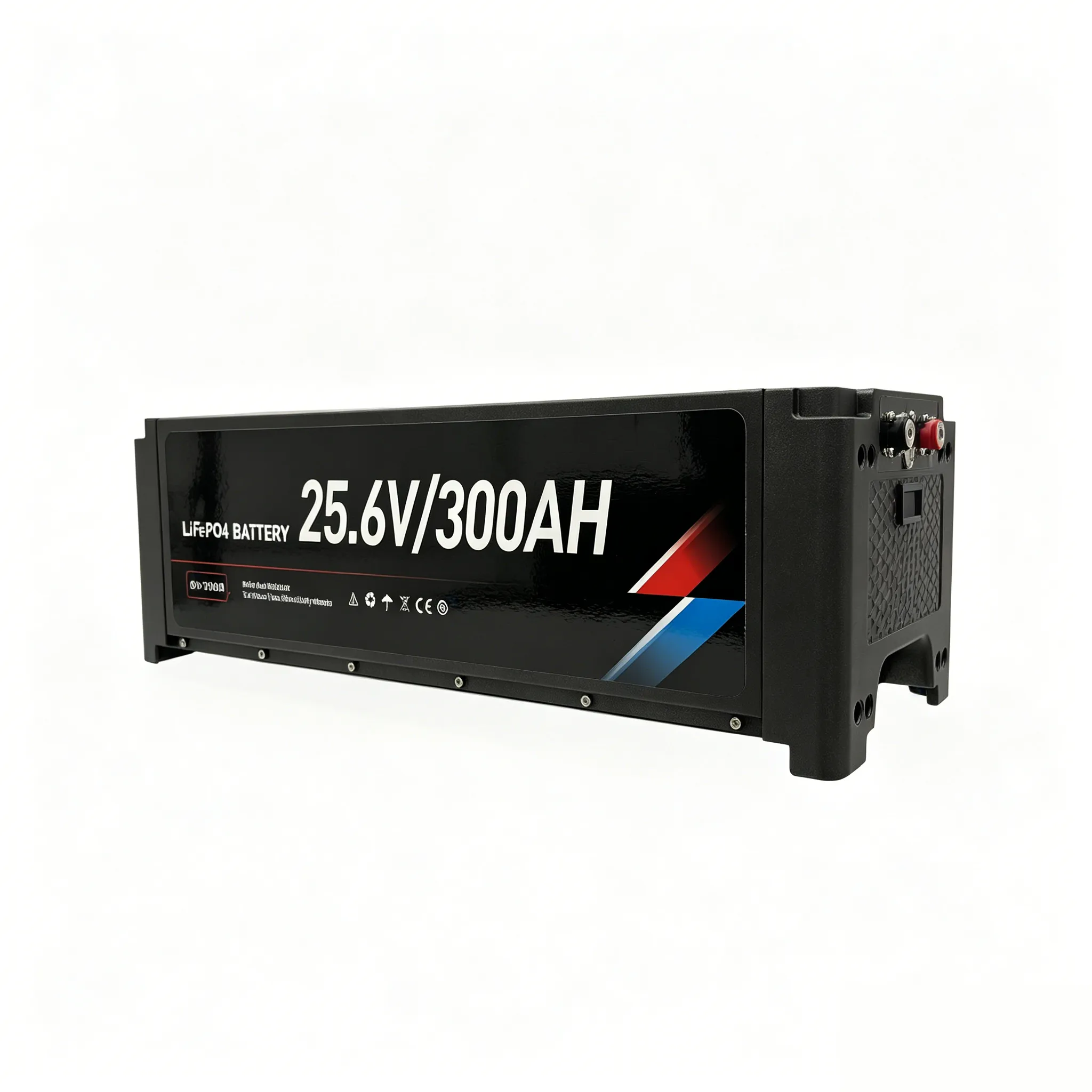

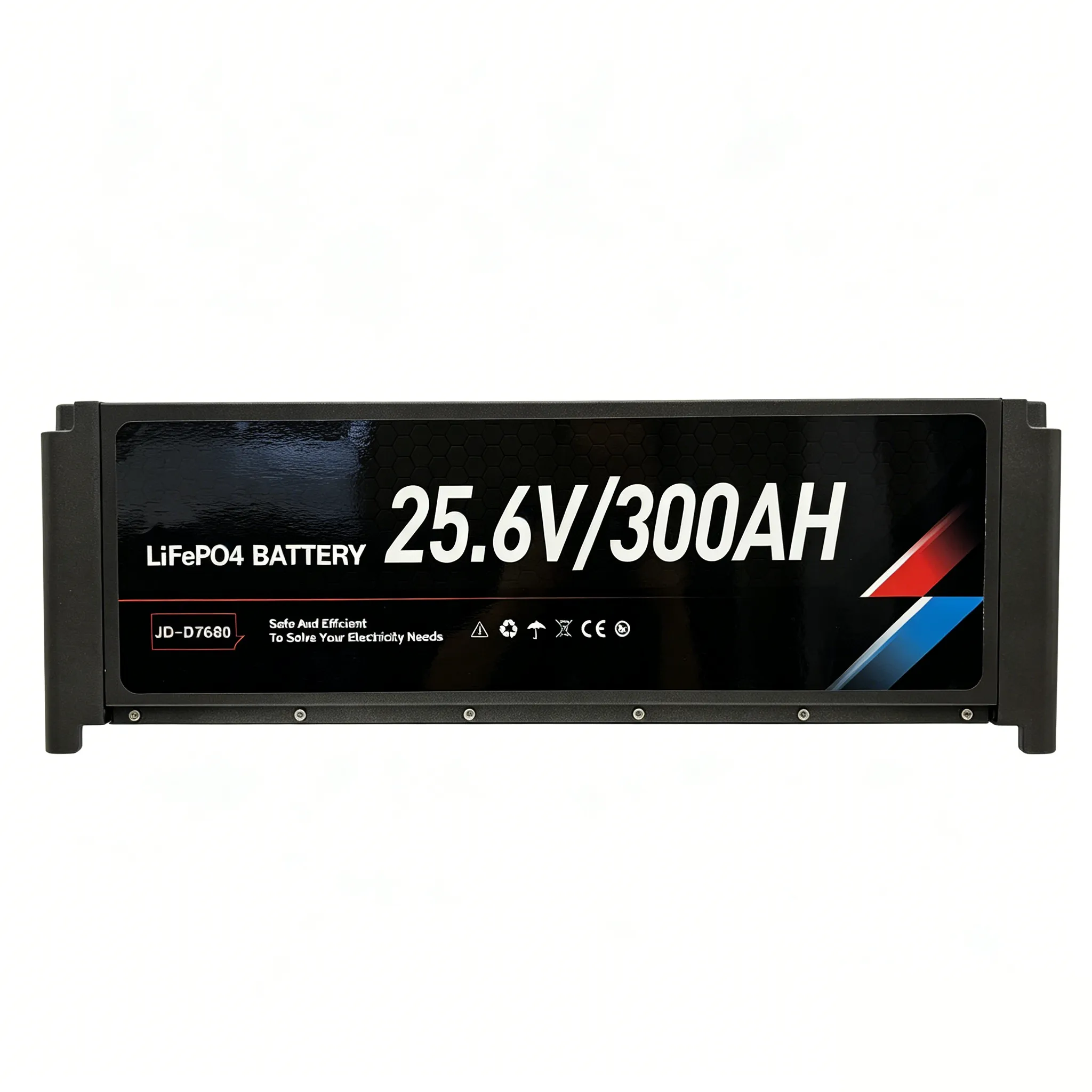

25.6V 300AH 7.68KWh LiFeP04 Battery JD-D7680
JD-D7680 25.6V/300Ah 7680Wh Energy Storage Battery (Intelligent BMS, 5-Year Warranty)
We design and manufacture high-performance LiFePO4 battery packs for solar energy storage, also known as deep cycle off-grid battery units, residential photovoltaic backup batteries, and commercial energy storage cells. Our JD-D7680 delivers stable high-current charge-discharge performance with premium Grade A cells, backed by a 5-year standard warranty, perfectly adapting to household, commercial and off-grid energy storage demands.
JD-D7680 25.6V/300Ah 7680Wh Energy Storage Battery (Intelligent BMS, 5-Year Warranty) Brief
This JD-D7680 battery pack features a rated specification of 25.6V 300Ah with 7680Wh rated energy. It supports a normal charging voltage of 29.2V, max charging current of 150A, discharge cut-off voltage of 20V (recommended 22.4V), and max continuous discharge current of 150A.
The built-in high-precision intelligent BMS provides comprehensive safety protection: 3.7V cell overcharge protection, 29.2V full battery overvoltage protection, 2.5V cell overdischarge protection, 150A-200A charge overcurrent protection, and 150A-300A discharge overcurrent protection. It operates stably in a working temperature range of -15℃~+55℃, and adapts to a load temperature range of -20℃~+50℃.
Product size: 750*270*260mm, net weight ≈54.06kg; packaging size: 820*335*435mm, gross weight ≈65.72kg, compatible with flexible installation, with a standard 5-year quality warranty.
JD-D7680 25.6V/300Ah 7680Wh Energy Storage Battery (Intelligent BMS, 5-Year Warranty) Application
- Residential solar photovoltaic energy storage and whole-house emergency backup power
- Off-grid solar power systems, remote areas, pastoral areas and island power supply
- RV travel, yacht and large vehicle-mounted energy storage scenarios
- Small commercial backup, telecommunication base stations and security monitoring power supply
| JD-D7680 LiFePO4 BATTERY | |
|---|---|
| BATTERY CORE PARAMETER | |
| Model | JD-D7680 |
| Battery Rating | 25.6V 300Ah |
| Watt-hour | 7680 Wh |
| Normal Charging Voltage | 29.2V |
| Maximum Charging Current | 150A |
| Discharge Cut-off Voltage | 20V |
| Recommended Discharge Cut-off Voltage | 22.4V |
| Maximum Discharge Current | 150A |
| PROTECTION PARAMETER | |
| Single Cell Over-Charge Protection | 3.7V |
| Whole Battery Over-Charge Protection | 29.2V |
| Single Cell Low Voltage Discharge Protection | 2.5V |
| Charging Over-Current Protection | 150A-200A |
| Discharging Over-Current Protection | 150A-300A |
| OPERATING TEMPERATURE | |
| Working Temperature | -15℃ ~ +55℃ |
| Load Temperature | -20℃ ~ +50℃ |
| DIMENSION & WEIGHT | |
| Product Size | 750*270*260mm |
| Net Weight | ≈54.06kg |
| Package Size | 820*335*435mm |
| Gross Weight | ≈65.72kg |
| QUALITY ASSURANCE | |
| Quality Assurance | 5 Years |
